WEEDS DETECTION FOR SELECTIVE SPRAYING

Accurate, fast, and easy to use weeds detection solution, saving up to 90% of chemicals

Illustration of a speedometer with a needle pointing to the center

Automatic control of volume

and distribution points according to the characteristics of the vegetation + herbicide control for increased productivity and reduction of cost.

Illustration of a drip irrigation system watering two plants.

Up to 25 km/h speed

which, with the help of advanced optics, gives high independence, allowing to achieve high robustness to changes in the measurement distance.

Icon of a report with bar chart and plant symbol

Plug & Play solution

frees from pre-scanning the field, uploading data to a database, selecting specific crops. Tracking plant activity to create data for optimization.

partly cloudy weather icon

Sunlight independence

due to advanced design of the measuring chain, which allows using sensors day irrespective of the time of day or at night.

Infrared camera sensor with red lights and "OPTRONIA" label mounted on a tripod.

KEY FEATURES

  • Reduction of chemicals up to 90%

  • Spray the smallest of weeds at up to 25 km/h

  • 40 cm size module with 50 cm footprint on ground

  • 25-50 cm nozzle spacing

  • Lateral resolution < 1,5 cm

  • Power consumption < 3W

  • Direct valve control: PWM for variable sprayed dose in relation to plant dimension

  • CANBUS communication

  • Intuitive user interface

  • Sunlight independent

  • 2 cm² plant size detected

  • Retrofittable

Spray Logics favicon

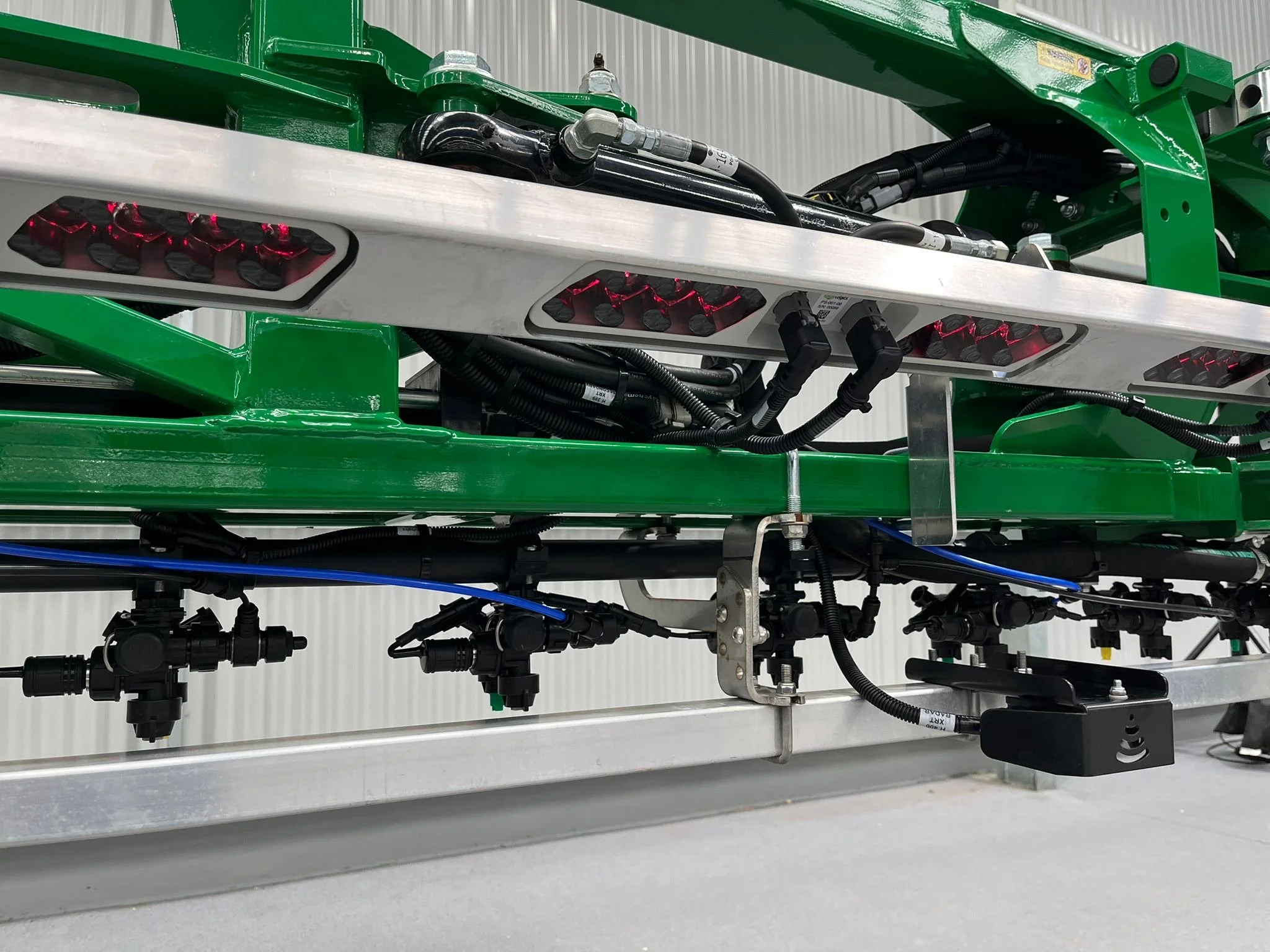

It’s an optical sensor, mounted on any tape of sprayer, able to detect and identify the plants both horizontally (for crops) and vertically (for orchards and vineyards) .

The technology is not based on camera but is a multispectral sensor that works in the range of infrared non visible frequencies.

We developed all the technology on our own without using any external components. Optics, electronics, embedded software and the design of the sensors are all developed internally by the team of Spray Logics in Innsbruck.

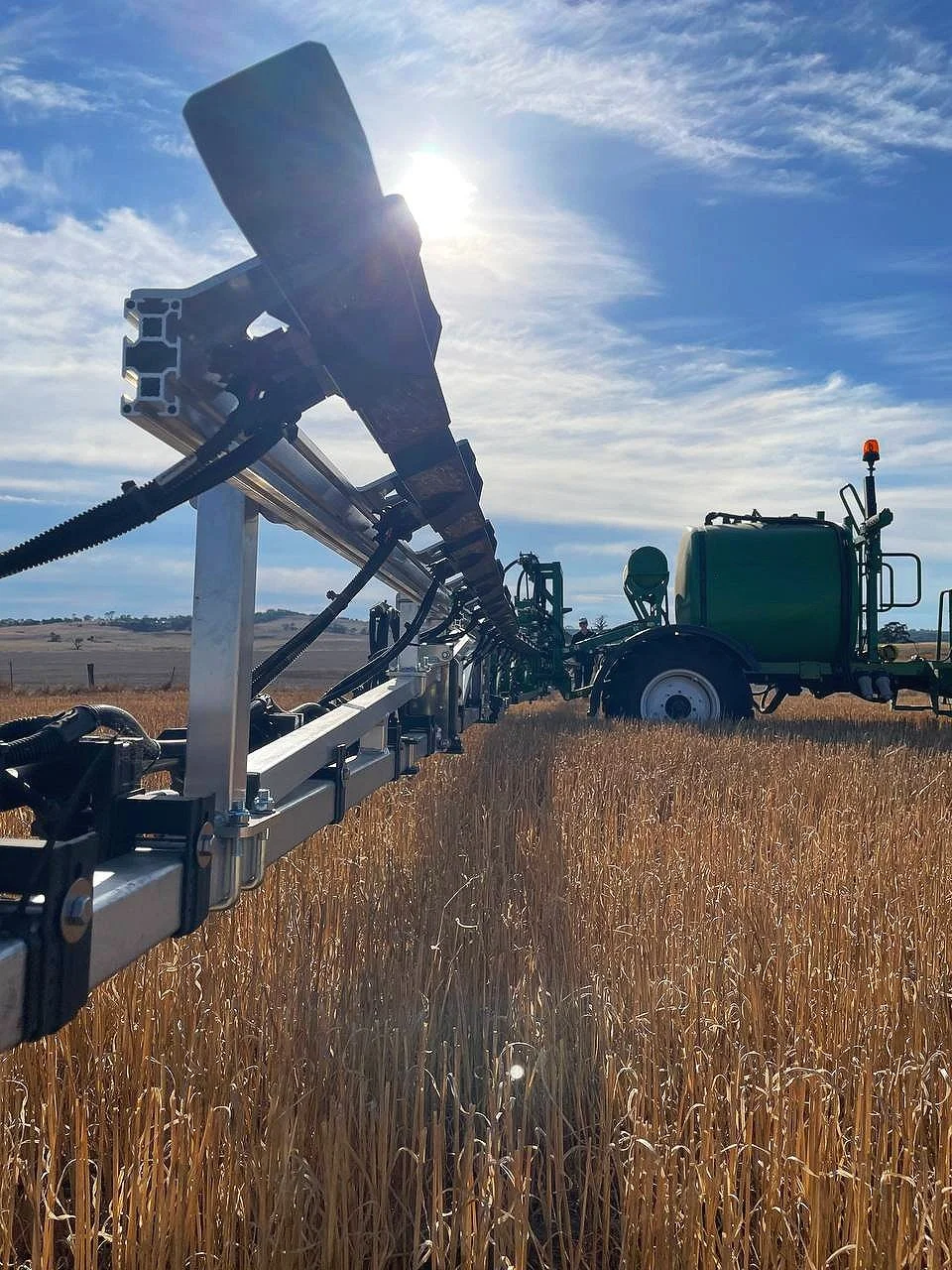

Agricultural sprayer in a wheat field with sun overhead

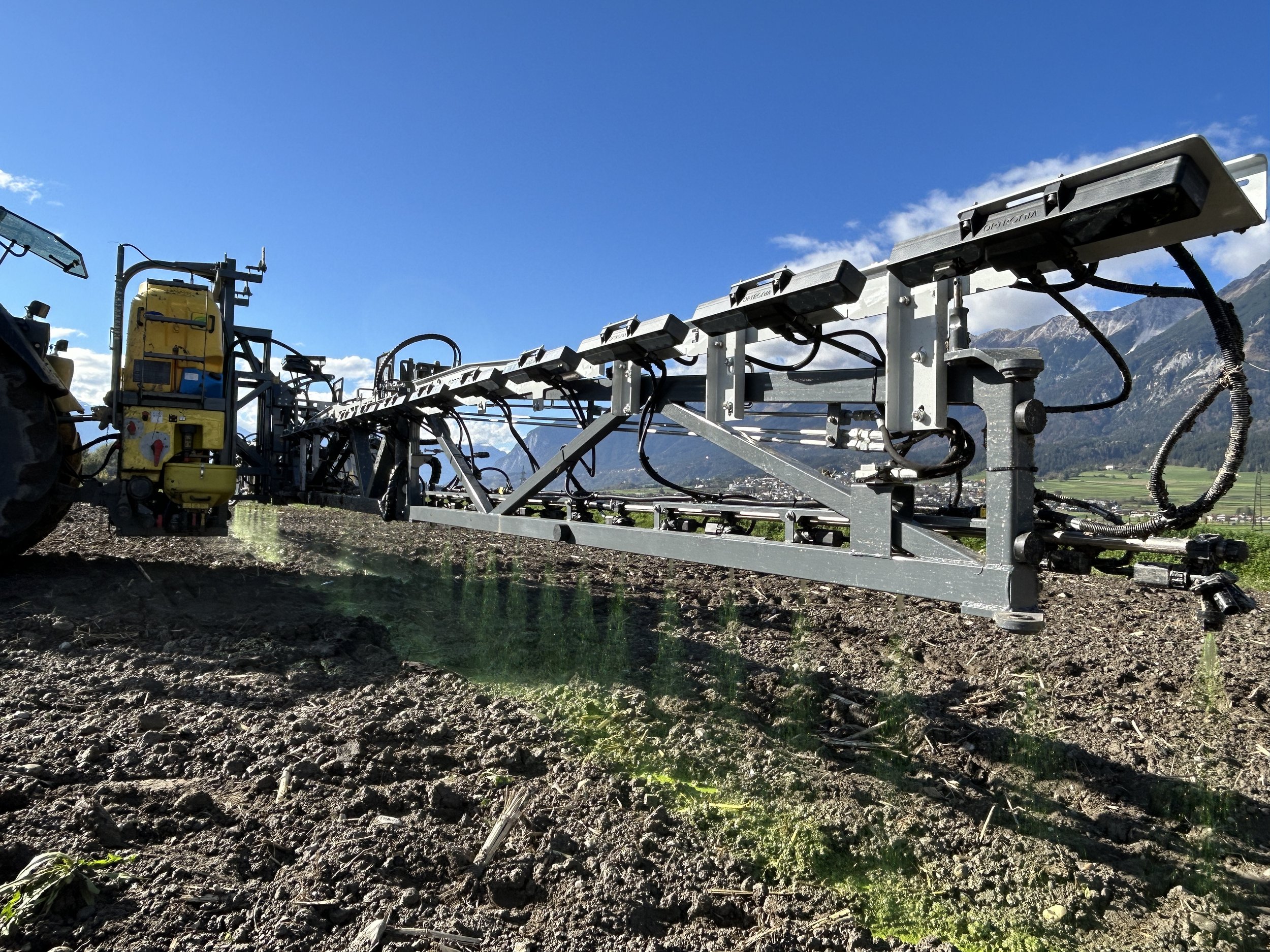

Large agricultural sprayer attached to a tractor on a field with mountains in the background.

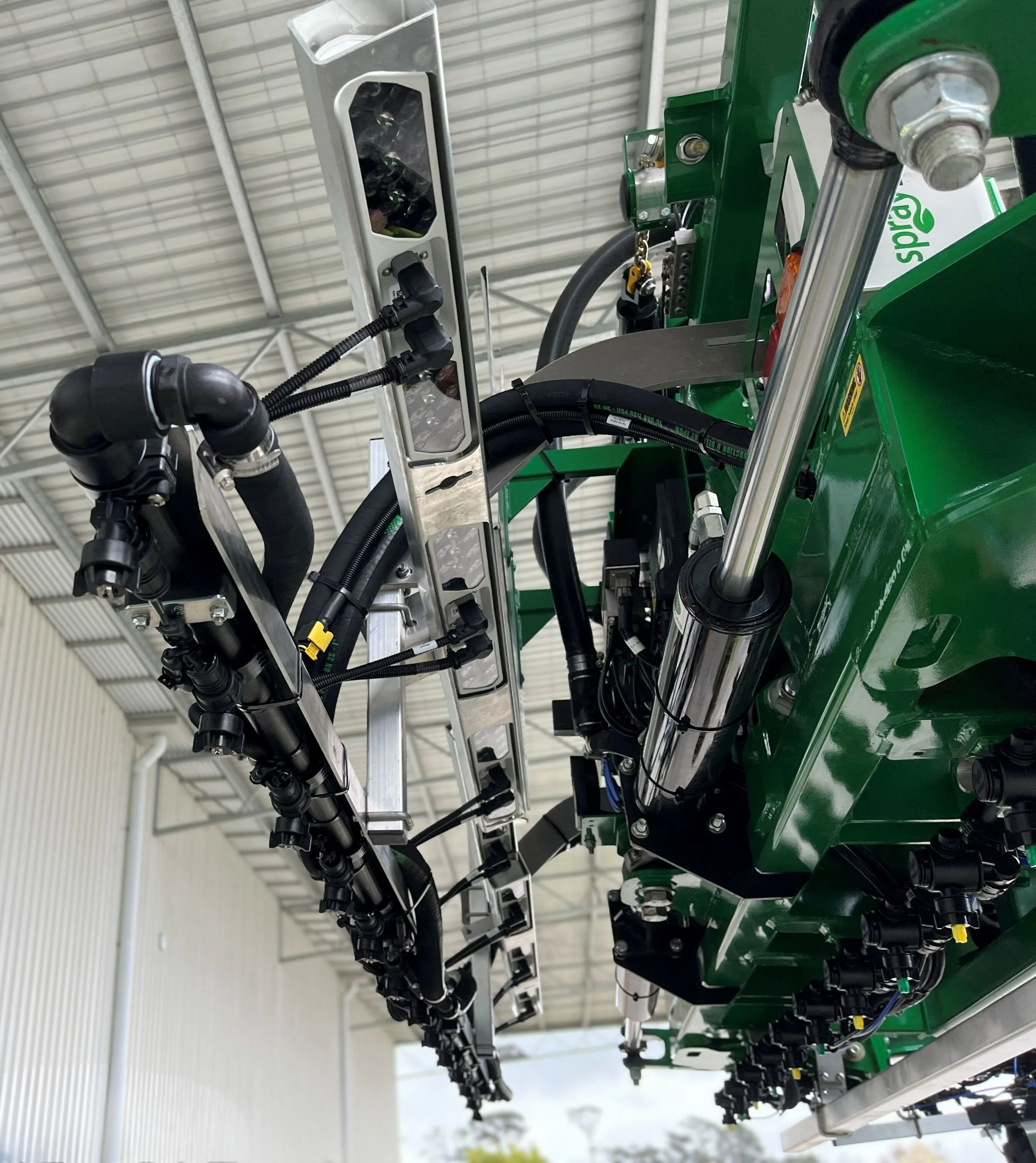

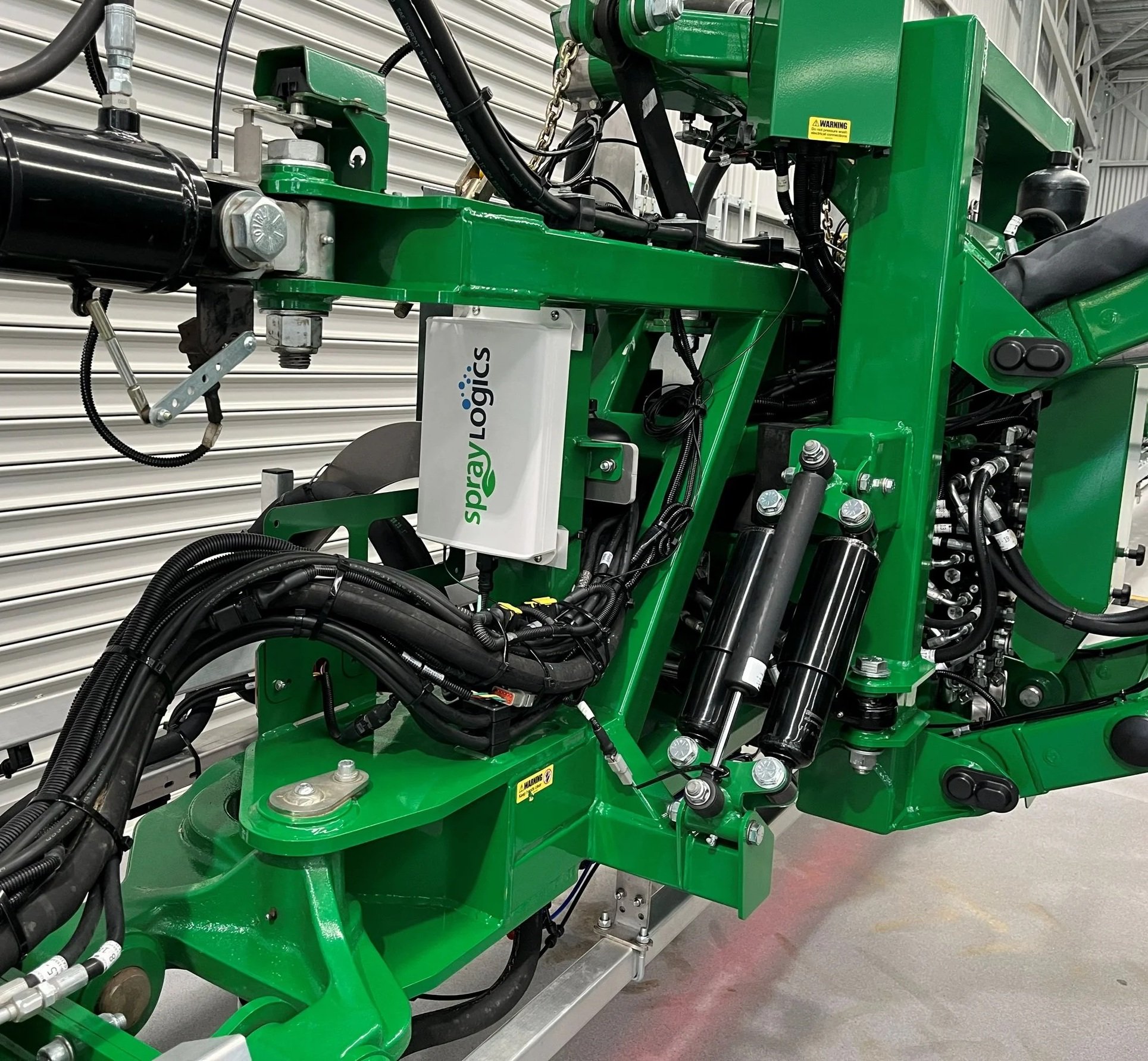

Close-up view of agricultural equipment featuring a black sensor attached to green machinery, with visible wires and connectors.
A red and white tractor with a large orange tank attached, plowing a field.
Aerial view of a tractor with a sprayer attachment working on a farm field, with soil and green plants visible.

Gain full control of your data and simplify your workflow for better yield and a more sustainable agriculture.

Find how to optimize your spray application with precision technology for quick, effortless crops management from the begging to end.
